| Product Name | Ratchet Tie Down Strap / Tow Strap / Tensioner |
| Standard Length | Most widely used 10m (9.5m + 0.5m). Other lengths available. OEM and ODM support. |
| Color Options | Orange, Blue, Black, Yellow, and customized colors. |
| Hook Types | Double J Hook, S Hook, Flat Hook, and others. |
| Standard | GS, CE, ISO Certification. |
| Webbing Material | 100% AA grade polyester. |
| Width of Belt | Breaking Strength |
|---|---|
| 25MM / 1" | 500 - 1000 KGS |
| 38MM / 1.5" | 2000 - 3000 KGS |
| 40MM / 2" | 1000 KGS |
| 48MM / 2" | 2000 KGS |
| 50MM / 2" | 2000 - 5000 KGS |
| 55MM / 2.5" | 2000 KGS |
| 60MM / 2.5" | 2000 KGS |
| 75MM / 3" | 8000 - 10000 KGS |
| 100MM / 4" | 8000 - 10000 KGS |
The most commonly used standard length is 10 meters (9.5m long strap + 0.5m short strap). We also offer customized lengths to meet your specific cargo requirements.
Yes, our standard colors include orange, blue, black, and yellow. Custom color options and branding are available through our OEM and ODM services.

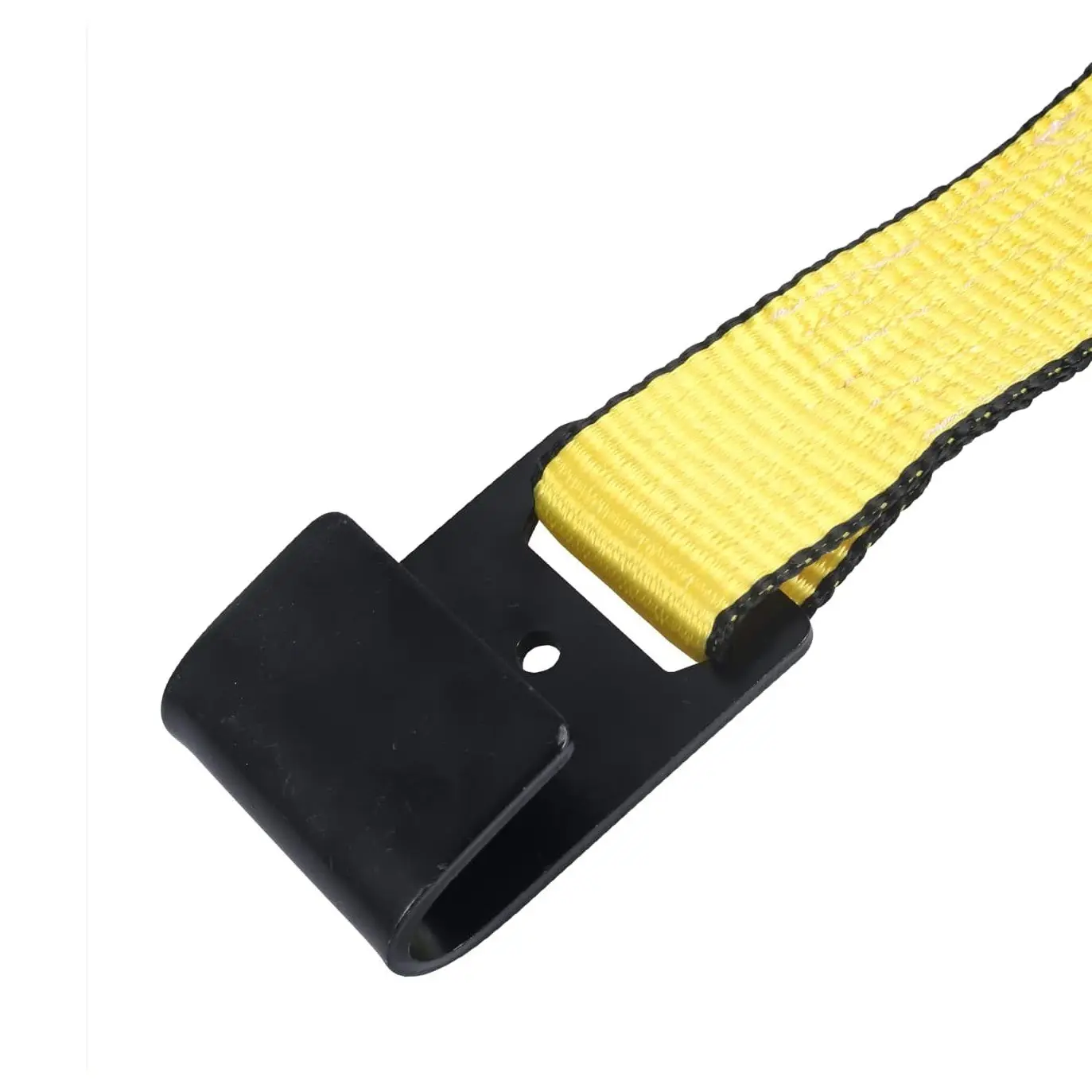

We supply various hook configurations to match different anchorage points, including Double J Hooks, S Hooks, Flat Hooks, and other customized end fittings.
The straps are manufactured from high-durability, 100% AA-grade polyester webbing, which provides excellent weather resistance and heavy-load capacity.
Yes, our ratchet tie-down straps conform to safety regulations and carry GS, CE, and ISO certifications to ensure reliable operation under heavy tension.
Breaking strength depends on the strap width, ranging from 500 KGS for 25mm (1") straps to 10,000 KGS for 100mm (4") heavy-duty straps. Always select a strap capacity that exceeds the weight of your load with an appropriate safety margin.
